PLC Control Relay Making Machine Double Station Relay Laser Welding Line

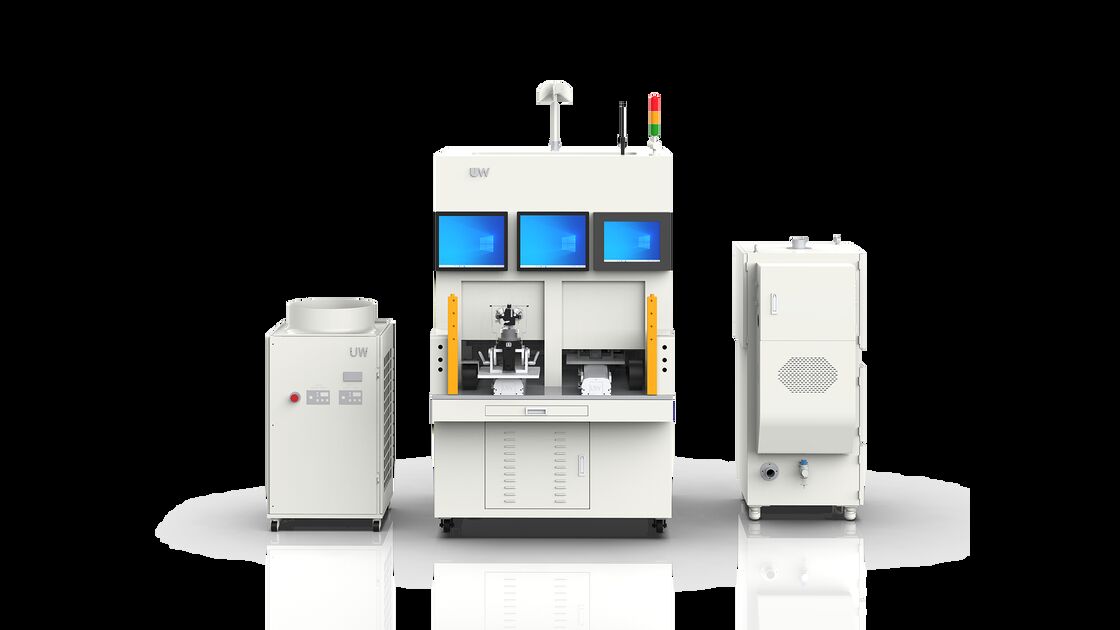

UW’s double-station relay laser welding table for comprises a positioning fixture, welding three-axis, rotary structure for blowing coaxial shielding gases, double input and output shafts, PLC control system, laser welding system, and so on to achieve manual loading and unloading on automatic welding. Each unit of the welding platform is modular in design and can work independently.

The ejection head is designed with an external rotating coaxial blowing structure; According to the thickness of the welding workpiece, the maximum welding speed is 20mm/s; The welding track is input by CNC programming or teaching mode; The welding process is automated; The welding program can be modified, and the operation and modification permissions  can be set; It equips with a standard 17-inch display.

Highlights

1. An imported fiber laser is used as the processing light source, which has the characteristics of high energy, good beam quality, fast welding speed, large aspect ratio, energy concentration, small heat-affected area, and so on;
2. The motion axis is driven by a servo motor, using precision ball screws and linear guides as transmission elements with high precision and high speed. The maximum dry running speed is 2000mm/s, and the repeated positioning accuracy is ±0.03mm/300mm;
3. The control system can achieve multi-axis linkage, and the ejection head is equipped with external coaxial blowing;
4. Small in size, no consumables,and maintenance-free;
5. With the industrial PC and PLC control, it is capable of spot and linear track welding. The welding track is input by CNC programming or teaching mode. The welding process is automated and the welding program can be modified;
6. The laser head is equipped with a collimation system for easy connection to the fiber optic laser and an industrial CCD monitoring system for real-time monitoring of the welding process.

Technical Parameters
