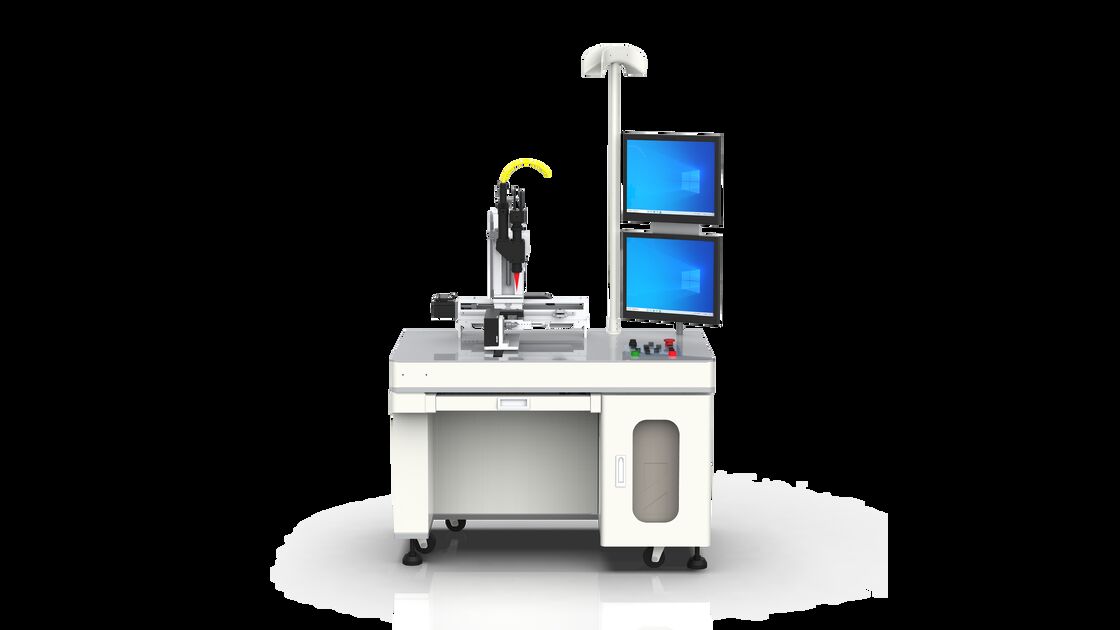

PC Control Medical Device Welding Equipment Welding Table High Precision

For the special use scenarios of medical devices, most medical devices have extremely small structures and complex processes, so only lasers can be selected for the welding processing. To tackle the above-mentioned difficulties across the industry, this equipment has equipped with a CCD magnified imaging monitor, which ensures the harsh processing accuracy requirements of medical devices.

This equipment is widely used in the welding production of zebra guide wires, disposable stone extraction baskets, disposable airway guide wires, nasobiliary drainage catheters, and so on, effectively solving the practical difficulties that microdevices in the medical device industry cannot be precisely processed. At the same time, the problem of structural sealing is taken into account in the design of the equipment, which effectively solves the problem of pollution prevention in high-purity medical device production sites.

Highlights

1. An domestic or imported fiber laser is used as the processing light source, which has the characteristics of high energy, good beam quality, fast welding speed, large aspect ratio, energy concentration, small heat-affected area, and so on;
2. The motion axis is driven by a servo motor, using precision ball screws and linear guides as transmission elements with high precision and high speed;
3. The overall structure of the equipment is simple and convenient for cleaning, daily maintenance, and other operations;
4. This equipment only occupies a small floor area and does not require any additional consumables during operation, which is convenient and practical. At the same time, it can also be modified and upgraded according to customer needs;
5. This equipment adopts the sealed design for its structure, and its power part is arranged with a sunken design, which effectively protects the safety of operators;
6. Equipped with the industrial CCD monitoring system to monitor the product’s clamping and welding processes in real-time.

Technical Parameters
