| Brand Name: | UW |
| MOQ: | 1set |
| Price: | Negotiation |
| Payment Terms: | T/T |

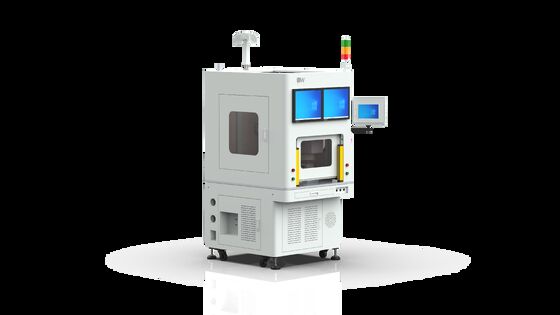

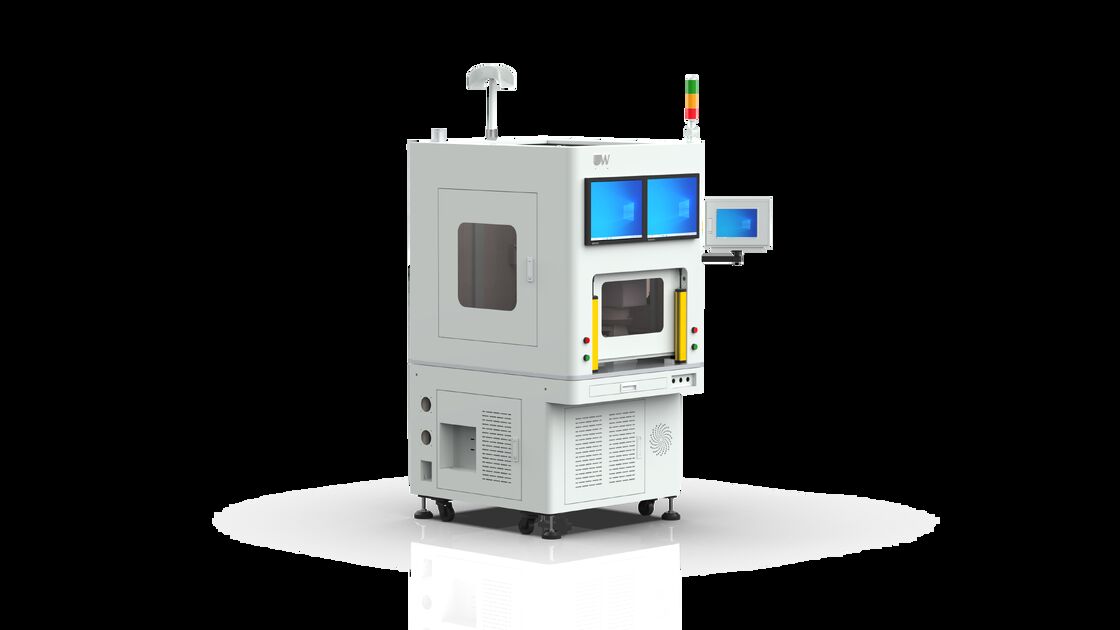

This equipment adopts galvanometer welding to improve the welding efficiency. Its servo motor-driven fixture can adjust the size of the pressure under the fixture, and the pressure can be maintained at a constant size. It is equipped with a high-precision displacement sensor, which can monitor the collapse value during the welding process in real-time. When the welding collapse value is required, the welding can be stopped immediately. Besides, it is equipped with a visual monitor for easy debugging and observing the welding effect. Also, this equipment uses the standard rack and upper cover, which significantly shortens the production cycle and realizes rapid delivery.
Highlights
Technical Parameters
| Dimensions(L*W*H) | 900*1100*1850mm |
| Processing Format | 170*170mm |
| Control Method | PC control + PLC control, with a 17-inch LCD display |
| Welding Software | UW’s exclusive welding software |
| Z-Axis Stroke (Manual) | 400mm |
| Welding Trajectory Input Method | CNC programming or teaching mode |
| CCD Weld Monitoring | Equipped with a 17-inch LCD monitor makes it easy to observe the processing quality and processing position; |
| Maximum Welding Speed | 1000mm/s |
| Worktable Power | Single-phase AC 220V |
| Host Model | UW-100-915(Compatible with various types of semiconductor hosts) |
