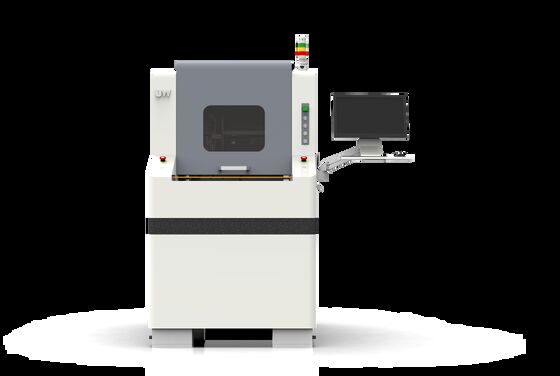

High Speed Solder Ball Jet Welding Table With Double Station Working Mode

Name: High Speed Solder Ball Jet Welding Table With Double Station Working Mode
Brand: Shenzhen Unite Winners Laser System Co., Ltd.
Availability: InStock

Brand Name:	UW
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Laser Power:

50W—200W

Laser Wavelenth:

915nm/1064nm

Laser Type:

Continuous Semiconductor Laser/continuous Fiber Laser

Laser Energy:

0-100J

Welding Range:

250*250mm

Cleanliness:

Class 10000 And Below

Packaging Details:

carton box/wooden box

Highlight:

Solder Ball Jet Welding Table

High Speed Solder Ball Jetting Machine

Product Description

The whole equipment is composed of marble combined with metal plate square tubes, which ensures that the high-speed welding machine has slight vibration and high stability. The double-station working mode is adopted to maximize the use of the solder ball ejection head to improve the welding efficiency. The welding part is equipped with a linear motor combined with a feeding and grinding module to achieve short-distance smooth start and stop, long-distance swift response, and high-standard repeat positioning accuracy to ensure welding consistency and stability. The advanced solder ball jetting technology can satisfy the soldering and welding of precision electronic components , and the ball ejecting speed can reach up to 3 balls/second, thus avoiding the disadvantages of low precision and low efficiency of the traditional electric soldering and tin wire welding. At the same time, the equipment is easy to operate, which greatly improves the production capacity of customers' products and achieves a win-win situation of high efficiency and high return.

Highlights

The highest welding efficiency is 3 balls/second, with alternating two stations for non-stop welding;
Solder ball diameter tolerance ±0.02mm, good tin consistency, and the linear motor module has high welding accuracy;
Solder ball 100-1200um can be switched quickly, and is compatible with SnPb, SnAg, SnAgCu and other solder balls;
The maintenance is simple as it only requires regularly adding solder balls as well as cleaning and replacing the spray nozzle in daily life.

Techinical Parameters

Laser Power	50W—200W
Laser Wavelenth	915nm/1064nm
Laser Type	Continuous semiconductor laser/continuous fiber laser
Laser Energy	0-100J
Pulse Width	0.2-1000ms
Energy Stability	±3%
Number of Loading Shafts	2
Number of Welding Heads	1
Welding Range	250*250mm
Maximum Speed	300mm/s
Repeatability	±20um
Temperature	15-25℃
Humidity	30%-80%
Cleanliness	Class 10000 and below
Dimensions(LWH)	120012001900mm
Voltage & Max Current Frequency	220VAC, maximum current 25A, 50/60Hz
Ball Jetting Efficiency	Up to 3 balls /s
Solder Ball Diameter	100-1200um
Nozzle Service Life	100K-200K times
Nitrogen Inlet Pressure	3-10Bar
Nitrogen Pipe Diameter	ø6mm
Compressed Air Inlet Pressure	Maximum 7Bar
Compressed Air Pipe Diameter	ø8mm
