Energy Storage System Automatic Cell To Pack Production Line Modular Design

Name: Energy Storage System Automatic Cell To Pack Production Line Modular Design
Brand: Shenzhen Unite Winners Laser System Co., Ltd.
Availability: InStock

Brand Name:	UW
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Production Efficiency:

≥ 8PPM

Failure Rate:

≤ 2%

Floor Space:

70m*6m*3m (Customizable)

Main Configuration:

4000W Laser + Rayleigh Galvanometer

Packaging Details:

carton box/wooden box

Highlight:

Automatic Cell To Pack Production Line

Energy Storage Cell Production Line

Modular Energy Storage Battery Production Line

Product Description

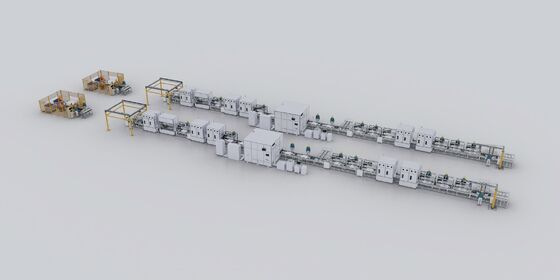

The whole line includes a cell scanning/OCV testing station, cell stacking, polarity testing station, pack press-fitting station, pole addressing station, pole laser cleaning station, CCS manual installation, Busbar welding station, testing station for the insulation withstanding voltage, double-layer double-speed chain line and hoist, etc.

The overall layout of the production line is reasonable and compact to maximize the avoidance of space waste, and the overall design is exquisite;

Multiple CCDs and rangefinders are used for detection and monitoring. The EMS intelligent information management platform is configured to realize the real-time MES management of crucial process parameters such as information on the material, personnel, and equipment during assembly. The material flow of each machine room is completed by the material flow line to achieve intelligent, flexible, and information-based production.

Highlights

• The equipment is standard and modular and can be quickly combined according to the customer's process flow;

• Reasonable and compact layout, maximizing the avoidance of space waste, and the overall design is exquisite;

• The entire line is highly intelligent, significantly reducing the number of personnel and labor costs;

• Equipped with an intelligent information management platform for real-time management of crucial information such as materials, personnel, and equipment in the production process.

• With UW Laser’s independently developed laser host, it can improve the product qualified rate and stability;

• The equipment is modular in design to significantly reduce the manufacturing cycle and commissioning cycle, allowing it to be quickly applied to production;

• A more comprehensive safety protection system is adopted to ensure personnel safety and significantly reduce accidents.

Technical Parameters

Parameter Name	Parameter Value
Production Efficiency	≥ 8PPM
Failure Rate	≤ 2%
Welding Yield	The first-time excellent rate of equipment is 98%, and the final qualified rate is 99% (including repairs and excluding bad incoming materials)
Main Configuration	4000W laser + Rayleigh galvanometer
Floor Space	70m6m3m (Customizable)
