Auto Cylindrical Battery Pack Production Line For 34191 34207 40166 46119 Battery

Name: Auto Cylindrical Battery Pack Production Line For 34191 34207 40166 46119 Battery
Brand: Shenzhen Unite Winners Laser System Co., Ltd.
Availability: InStock

Brand Name:	UW
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Floor Space:

30.4m*17.5m*3.2m(customizable)

Automationlevel:

Fully Automated

Warrantyperiod:

12 Months

Safetyfeatures:

Emergency Stop, Overload Protection, Fire Suppression

Equipmenttype:

Battery Assembly Line

Precision:

±0.01mm

Controlsystem:

PLC With Touchscreen

Product Name:

Battery Manufacturing Equipment

Packaging Details:

carton box/wooden box

Highlight:

Auto Cylindrical Battery Pack Production Line

46119 Battery Pack Production Line

40166 Battery Pack Assembly Line

Product Description

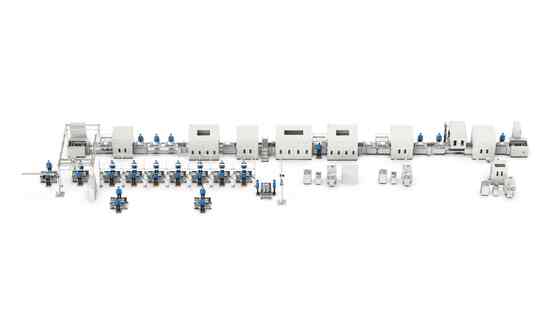

The whole project includes a module line and a pack line; The module line consists of a multi-speed chain circulation line, hoisting machine, dispensing machine, CCD camera ranging, busbar welding, module turning, and other equipment.The Pack line covers the roller line, including the hoist, box on-line transfer, module into the box, assembly installation, EOL testing, auxiliary airtightness off-line testing, and other equipment.

The whole line is mainly used for the production of battery modules and packs of 34191, 34207, 40166, and 46119; The EMS intelligent information management platform is configured to realize the real-time MES management of crucial process parameters such as information on the material, personnel, and equipment during assembly.

Highlights

• According to the customer's process flow, non-standard customization can be carried out quickly;

• The machine adopts a modular design, which is independent of the line body and coexists with each other;

• Simple operation, fewer consumables, high efficiency, high compatibility, and low maintenance cost.

• A more comprehensive safety protection system is adopted to ensure personnel safety and significantly reduce accidents;

• The mechanism is mature and stable and has been proven many times to significantly reduce the manufacturing cycle and commissioning cycle, allowing it to be quickly applied to production.

Technical Parameters

Parameter Name	Parameter Value
Floor Space	30.4m17.5m3.2m(customizable)
Equipment Failure Rate	Equipment Failure Rate < 2%, Whole Line Failure Rate < 3%
Mean Time Between Failures	Excluding Alarms < 5min
Takt Time	25ppm/cell
Qualified Rate	Equipment Qualified Rate≥ 99%, Final Qualified Rate ≥ 99.5%
