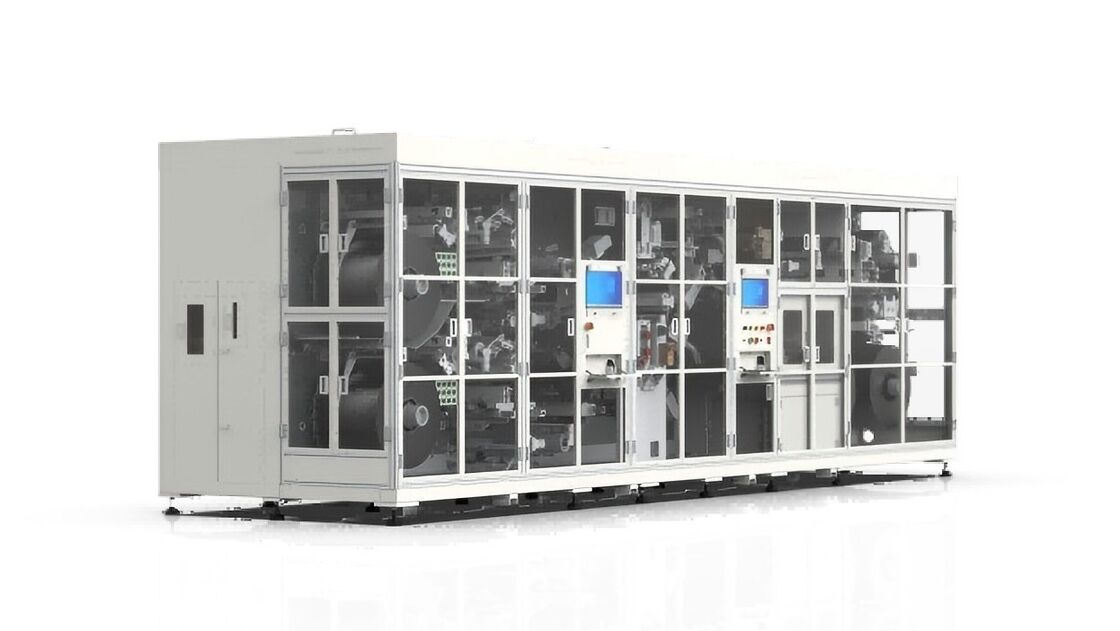

Electrode Sheets Notching And Slitting Machine 120m/Min Strong Compatibility

Name: Electrode Sheets Notching And Slitting Machine 120m/Min Strong Compatibility
Brand: Shenzhen Unite Winners Laser System Co., Ltd.
Availability: InStock

Brand Name:	UW
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Type:

Notching And Slitting Machine

Production Speed:

10-165m/min

Voltage Requirement:

Three-Phase Five-Wire AC380V±5%/3PH, 50Hz

Current Requirement:

100A

Rated Power:

60KW(Including Dust Collector 8kw, Waste Machine 11kw)

Yield Rate:

≥99.5%

Packaging Details:

carton box/wooden box

Highlight:

Electrode Sheets Notching And Slitting Machine

Notching And Slitting Machine 120m/Min

Product Description

Applications

The equipment is used for notching and forming the tabs and slitting of electrode sheets.

Highlights

• The tension of the electrode and diaphragm are all controlled by servo motors in a closed loop, so the tension fluctuation is small;

• Each workstation area is independently isolated from each other and equipped with high-efficiency FFU, with less dust and many protection points;

• Wind speed and negative pressure monitoring at key dust removal stations ensure high cleanliness;

• Closed-loop control of electrodes feeding, high production accuracy;

• Modular design for model change saves time on model change and commissioning;

• The equipment is highly efficient: the maximum speed reaches 120m/min;

• The modular and standardized design of the whole machine makes commissioning, operation, model change and maintenance convenient;

• The host computer software is independently developed and responds quickly to demand changes;

• Strong compatibility: compatible with multiple sizes and types of tabs;

• The cutting software is independently developed and the cutting control system is one-to-two, which can achieve high-speed, high-precision, high-stability continuous and gap coating cutting;

• High yield rate: the yield rate is ≥ 99.8%, the tabs are free of folding, damage, and wrinkles, and there are little burrs and heat effects;

• The cutting dust removal effect is good, and two-stage dust removal is adopted to reduce dust spillage;

• Stable cutting effect and strong compatibility with incoming materials;

• The key load-bearing parts are made of castings, and the structure is stable.

Parameters

Notching and slitting machine
Mechanical Speed	≥200m/min	Voltage Requirement	Three-Phase Five-Wire AC380V±5%/3PH, 50Hz
Production Speed	10-165m/min	Current Requirement	100A
Failure Rate	<2%	Rated Power	60KW(Including dust collector 8kw, waste machine 11kw)
Utilization Rate	98%	Power Factor	0.7~0.8
Yield Rate	≥99.5%	Compressed Air Pressure	≥0.5MPa
Model Change Time	≤2H	Air Consumption	4m3/min
