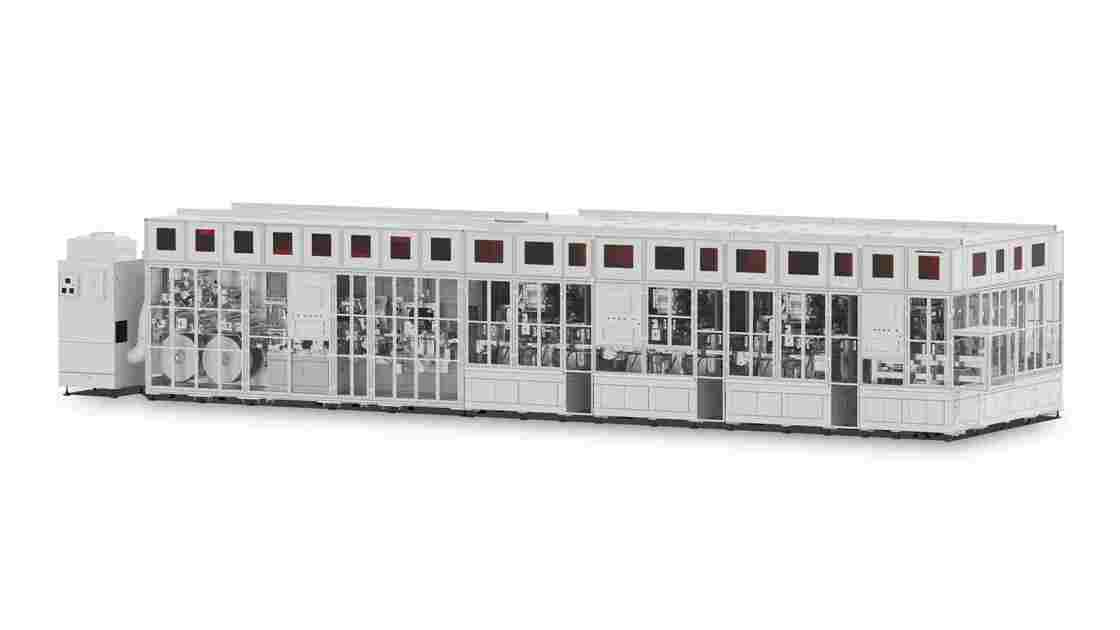

Modular Design Blade Cell Assembly Line Fully Automatic For Electric Vehicles

Name: Modular Design Blade Cell Assembly Line Fully Automatic For Electric Vehicles
Brand: Shenzhen Unite Winners Laser System Co., Ltd.
Availability: InStock

Brand Name:	UW
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Warranty Period:

12 Months

Automation Level:

High Automation With Robotics Integration

Controlsystem:

PLC And HMI Touchscreen Interface

Precision:

±0.01 Mm

Safetyfeatures:

Emergency Stop, Overload Protection, Fire Suppression System

Equipmenttype:

Automated Production Line

Productname:

Blade Cell Assembly Line

Application:

Electric Vehicle Battery Production

Packaging Details:

carton box/wooden box

Highlight:

Modular Design Blade Cell Assembly Line

Blade Cell Assembly Line Fully Automatic

Product Description

Equipment Overview

This line mainly consists of: hot pressing machine, pairing, ultrasonic final welding machine, battery connector laser welding machine, mylar wrapping machine, shell pre-welding machine, top cover laser welding machine, primary helium leakage test machine, sealing pin welding machine, secondary helium leakage test machine, automatic conveying system [It includes the fitting components (including fixtures) for the loading conveyor line (by bidder) after baking, primary helium leak detection, and unloading from the stacking machine; fitting components for connecting seal pin loading and the secondary electrolyte conveyor line; fitting components for connecting the secondary electrolyte conveyor line and the subsequent process], tape marking machine (offline), wire-filling and repair welding machine (offline) and MES data traceability and transmission, etc.

Applications

This assembly line is suitable for the automatic assembly and production of blade cell.

Highlights

• Efficient, stable and intelligent equipment;

• Compatible with: L300, L600 and other types of cells;

• Quick changeover is supported;

• High equipment utilization rate and high first pass yield;

• Modular design of the whole line; automatic dispatching of auxiliary materials; and fully automatic loading.

Technical Parameters

Parameter Name	Parameter Value
Dimensions LWH	75m10m3.0m(24PPM)
Capacity/Speed	6PPM ~ 24PPM (Customizable)
Yield Rate of the Whole Line	≥ 97% (Except for incoming materials)
Utilization Rate of Individual Machine	≥ 98%
OEE of the Whole Line	≥ 80%(Except for incoming materials)
