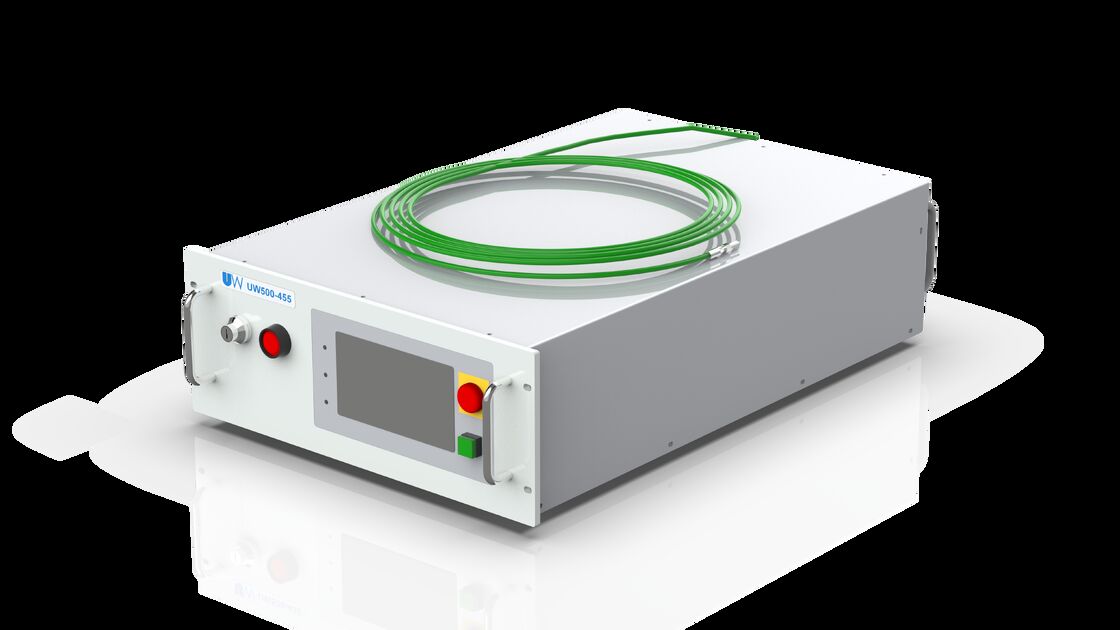

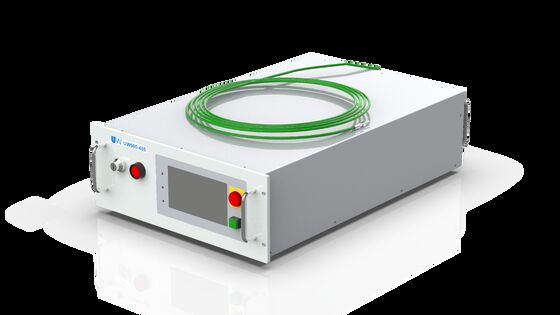

Industrial Blue Laser Machine 455nm Laser Soldering Equipment Water Cooling

Name: Industrial Blue Laser Machine 455nm Laser Soldering Equipment Water Cooling
Brand: Shenzhen Unite Winners Laser System Co., Ltd.
Availability: InStock

Brand Name:	UW
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Laser Wavelength:

455nm

Energy Stability:

≤ ±3%

Operating Mode:

Continuous

Laser Type:

Blue Laser

Coolingmethod:

Water Cooling

Compatible Output Heads:

Blue Laser Output Head, Shaping Spot Output Head

Packaging Details:

carton box/wooden box

Highlight:

Industrial Blue Laser Machine

455nm Laser Soldering Equipment

455nm Blue Laser Soldering Machine

Product Description

The blue laser is a low-power blue light laser specially developed for laser soldering. It is small in size and can be directly integrated into an automated workbench. Thanks to the high absorption rate of copper and gold in the blue light area, it is especially suitable for laser soldering of copper and gold pads as they can be quickly heated.

Highlights

· Copper and gold pads have a high absorption rate for blue laser light;

· With a high energy utilization rate, the heating of the pads can be completed with less energy;

· Avoid laser reflections that cause burns to the devices near the pads;

· Reduce the generation of tin beads.

Applications

· Battery sealing, battery poles, seal pins, explosion-proof valves, module welding, and so on in the battery industry;

· Advertising frames, TV frames, and so on in the hardware industry;

· In the sensor industry, etc.

Technical Parameters

Parameter Name	Parameter Value
Model	UW100-455	UW1000-455	UW2000-455
Output Power	100	1000	2000
Laser Wavelength	455nm
Energy Stability	≤ ±3%
Fiber Interface	D80 adaptation
Fiber Core Diameter	400um	600um	800um
Fiber Length	Standard 10 meters
Aiming Positioning	Blue Light Positioning
Power Input	AC220V ±10% 50Hz	AC380V ± 10%,50Hz
Whole Machine Power Consumption	＜ 1.3KW	＜ 12KW	＜ 16KW
Operating Mode	Continuous
Cooling Capacity Requirement	1kW	10kW	12kW
Cooling Method	Water cooling
Dimensions (LWH)	777L483W198H(mm)	1670L780W1289H(mm)
Weight (KG)	40KG	300KG	310KG
Compatible Output Heads	Blue Laser Output Head, Shaping Spot Output Head
