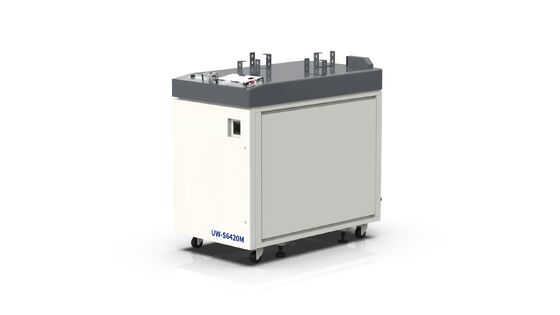

Hybrid Head Fiber Semiconductor Laser Welding Machine Adjustment Free

Name: Hybrid Head Fiber Semiconductor Laser Welding Machine Adjustment Free
Brand: Shenzhen Unite Winners Laser System Co., Ltd.
Availability: InStock

Brand Name:	UW
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Laser Wavelength:

Fiber Laser:1080nm Semiconductor Laser:915nm

Fiber Optic Interface:

Standard QBH

Power Input:

AC380V±10%,50/60Hz

Aiming And Positioning:

Red Light Indication (welding Head CCD Positioning)

Welding Method:

Laser Welding

Cooling Method:

Water Cooling

Application:

Battery Sealing, Battery Poles, Seal Pins

Packaging Details:

carton box/wooden box

Highlight:

Fiber Semiconductor Laser Welding Machine

Hybrid Head Laser Welding Machine

Product Description

The hybrid welding laser adopts fiber laser and semiconductor laser as the mixed light sources. The two lasers work

together on the workpiece through the hybrid welding head, and the collaborative control of the two lasers is realized

through the CPU core control system.

Highlights

• The comprehensive electro-optical efficiency is more than 30%, which greatly saves power consumption and operating

costs;

• Competent in harsh working environment, with high tolerance to dust, shock, vibration, humidity and temperature;

• Excellent welding quality;

• Extremely high welding speed;

• Adjustment-free, maintenance-free, high stability;

• High electro-optical efficiency

Applications

Battery sealing, battery poles, seal pins, explosion-proof valve, module welding,and so on in the battery industry；

Advertising frames, TV frames, and so on in the hardware industry；

In the sensor industry, etc.

Technical Parameters

Parameter Name	Parameter Value

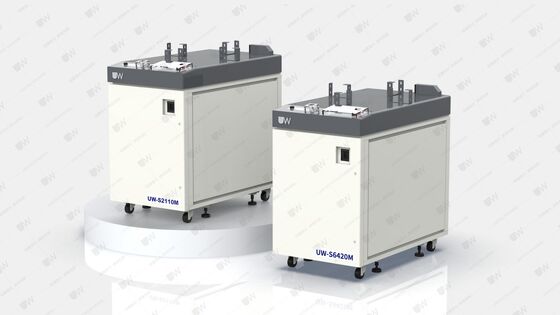

Laser Model	UW-S2110M	UW-S3210M	UW-S4220M	UW-S4310M	UW-S5320M	UW-S6420M
Output Power	Fiber: 1000W Semiconductor: 1000W	Fiber :2000W Semiconductor :1000W	Fiber :2000W Semiconductor :2000W	Fiber :3000W Semiconductor :1000W	Fiber :3000W Semiconductor :2000W Fiber :4000W	Fiber :4000W Semiconductor :2000W
Power Stability	＜±2%
Laser Wavelength	Fiber laser:1080nm Semiconductor laser:915nm
Fiber Optic Interface	Standard QBH
Fiber Core Diameter	Fiber laser:50/100um selectable Semiconductor laser: 400um
Fiber Length	20 meters is standard
Aiming and Positioning	Red light indication (welding head CCD positioning)
Power Input	AC380V±10%,50/60Hz
Operating Mode	Quasi-continuous pulse / Continuous/Modulation
Power Consumption	＜ 10KW	＜ 13KW	＜ 16KW	＜ 17KW	＜ 20KW	＜ 22KW
Cooling Capacity Requirements	5KW	7.5KW	12KW		15KW	17KW
Cooling mode	Water-cooling
Dimensions (LWH)	1370mm700mm1200mm
Weight (KG)	362(Kg)	379(Kg)	390(Kg)	406(Kg)	426(Kg)	446(Kg)
Compatible Output Heads	Dual Wavelength Composite Laser Output Head, Composite Laser Oscillating Head
