Ring Spot Fiber Laser Welding Machine For New Energy Power Batteries And 3C Fields

Brand Name:	UW
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Laser Type:

Ring Spot Fiber Laser

Application:

New Energy Power Batteries And 3C Fields

Product Name:

Lasers And Welding Machines

Weldingtype:

Laser Welding

Operation Mode:

Continuous / Modulation

Laser Wavelength:

1080±10nm

Cooling Method:

Water Cooling

Packaging Details:

carton box/wooden box

Highlight:

Ring Spot Fiber Laser Welding Machine

3C Fields Fiber Laser Welding Machine

Product Description

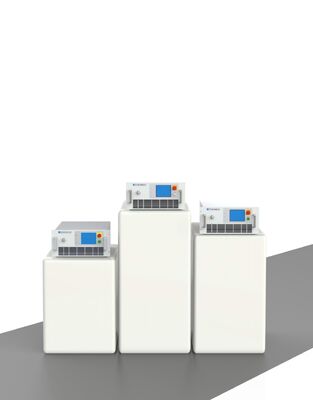

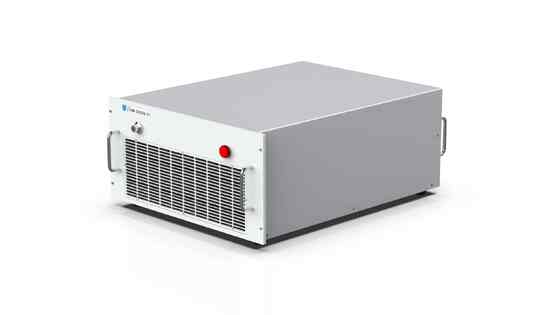

The self-made ring spot fiber laser series products of UW Laser are mainly developed for new energy power batteries, 3C and other fields. Featured with the advantage of high brightness of single-mode fiber laser, and also the advantage of spot distribution of ring spot fiber laser. Capable of applications such as precisive and high-speed welding of high-reflective materials, it can effectively suppress the generation of spatter and improve welding quality and yield.This series of products can provide total output power of 6000W at a maximum, and the mode of outputting beam can be flexibly adjusted. It can realize the power matching between center beam and ring beam in multiple modes of 2kW +2kW, 4kW +2kW and below, and the center power and ring power can be adjusted arbitrarily. With UW patented negative feedback power adjustment technology, the full-power life of the laser is increased by more than 20%. In addition, it can also realize special optical fiber output of various specifications such as 34/102um, 50/150um, 50/600um, 100/300um, 100/600um, etc.

Highlights

• Satisfies the processing of various non-ferrous metals such as copper, brass, aluminum, etc., and is suitable for various application requirements combined with high reflective field;

• The fluctuation of penetration depth is smaller, which is conducive to the process stability of batch welding products;·Applicable to the harsh environment of industrial plant temperature and dust;

• The photoelectric conversion efficiency is 38.1%, saving energy and electricity for users, and effectively reducing operating costs;

• The success rate margin is as high as 20%, which can meet the long-term (more than 5 years) full-load production of customers.

Applications

• Mainly used in the power battery industry connector plate welding, top cover full welding, busbar welding, side plate welding and other processes;

• High-speed, high-quality welding in automotive manufacturing, such as body-in-white, transmission system and electric vehicles.

Technical Parameters

Parameter Name	Parameter Value
Laser Model	UW-R2110U-050/150-20	UW-R4220U-100/600-20	UW-R4220U-34/102-20	UW-R4220U-014/100-10	UW-R6420U-050/150-20
Operation Mode	Continuous / Modulation
Polarization State	Random
Central Power	≥ 1000W	≥ 2000W	≥ 2000W	≥ 2000W	≥ 4000W
Ring Power	≥ 1000W	≥ 2000W	≥ 2000W	≥ 2000W	≥ 2000W
Total Output Power	≥ 2000W	≥ 4000W	≥ 4000W	≥ 4000W	≥ 6000W
Output Power Adjustment Range	5-100%
Laser Wavelength	1080±10nm
Radiation Bandwidth (3dB)	4-8nm				5-8nm
Switching Light Time	150-200us
Output Power Instability	≤ ±2%				≤ ±2%- ≤ ±3%
Red Light Indicating Power	0.5-1mw
Transmission Fiber Connector	Standard QBH
Beam Quality BPP(86%), Center	2.5mm*mrad	4.5mm*mrad	0.8mm*mrad	0.6mm*mrad	3mm*mrad
Beam Quality BPP(86%), Ring	8mm*mrad	30mm*mrad	3.8mm*mrad	3.5mm*mrad	9mm*mrad
Transmission Fiber Length	Standard 20m			Standard 10m	Standard 20m
Transmission Fiber Bending Radius (Under Load)	≥ 400mm
Transmission Fiber Bending Radius (No Load)	≥ 300mm
Operating Environment Temperature	5~30℃
Operating Environment Humidity	10~80%
Storage Environment Temperature	-10~60%
Dimensions (LWH)	1370L1200H700W(mm)
Weight	340KG	420KG			470KG
Cooling Method	Water Cooling
Operating Voltage	AC380V±10% 3P+N+PE 50/60Hz
Power Consumption	9kW	16KW			24KW
Compatible Output Heads, Galvoscanner	Fiber Galvoscanner System, Fiber Laser Output Head, Oscillating Head
