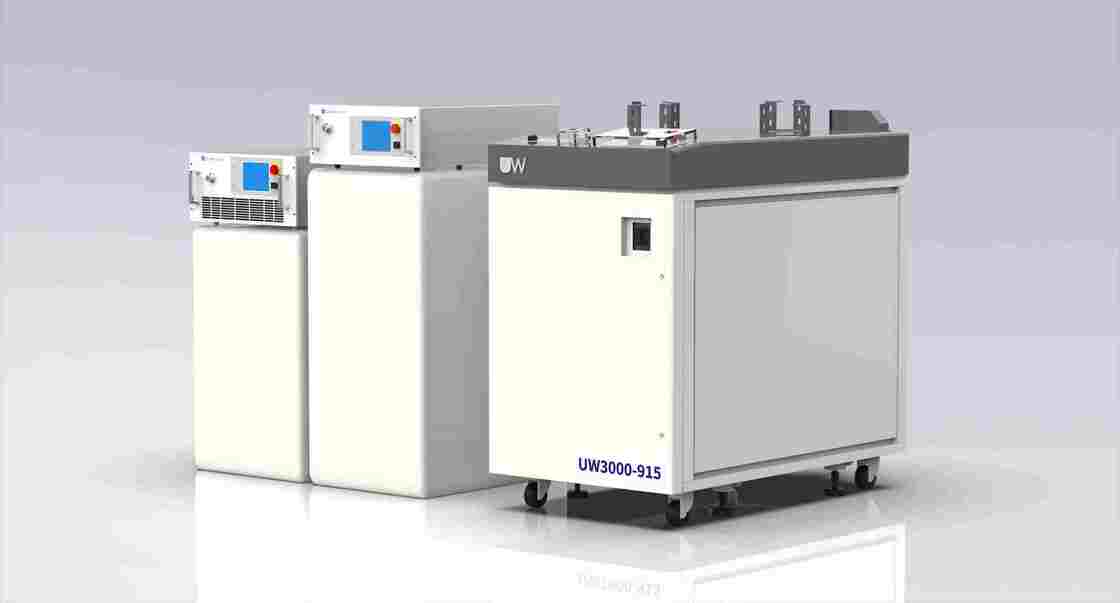

Automated Semiconductor Lasers And Welding Machines For Hard To Weld Areas

Name: Automated Semiconductor Lasers And Welding Machines For Hard To Weld Areas
Brand: Shenzhen Unite Winners Laser System Co., Ltd.
Availability: InStock

Brand Name:	UW
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Operating Mode:

Continuous / Modulation

Laser Wavelength:

915nm

Aiming And Positioning:

Red Light Indication (welding Head CCD Positioning)

Cooling Mode:

Water Cooling / Air Cooling

Power Stability:

＜ ±1%

Packaging Details:

carton box/wooden box

Highlight:

Automated Lasers And Welding Machines

Semiconductor Laser Welding Machine

Product Description

With its unique nature of heat source and the characteristics of flexible and adjustable spot size, and local heating, semiconductor lasers greatly help solve the problems that cannot be solved by traditional wire welding with the improvement of IC chip manufacturing level. When using a semiconductor laser as the heat source, fiber optic transmission is available, so it can be processed in areas that are not easily welded by conventional means, and it is flexible and well-focused, making it easy to automate multi-station devices.

Highlights

• No wearing parts;

• Long service life;

• Even beam energy distribution;

• Miniaturized structure;

• High electro-optical conversion efficiency

Applications

• Plastic welding in the automotive industry, such as sensor housings, fuel injectors, horns, gearbox accessories, electronic brakes, etc;

• 3C soldering in the consumer electronics industry, such as PCB boards, micro motors, motor coils, cameras, etc;

• In the medical industry, etc.;

• Thin metal welding in the hardware industry, such as the shell of the range hood, the interior of the washing machine, etc.

Technical Parameters

Parameter Name
Laser Model	UW050-915	UW100-915	UW200-915	UW400-915	UW1000-915	UW2000-915	UW3000-915
Output Power	50W	100W	200W	400W	1000W	2000W	3000W
Power Stability	＜ ±1%
Laser Wavelength	915nm
Fiber Optic Interface	D80 adaptation				Standard QBH
Fiber Core Diameter	200um				300um/400um	400um	600um
Fiber Length	Standard 5m		Standard 10m		Standard 20m
Aiming and Positioning	Red light indication (welding head CCD positioning)
Power Input	AC220V ± 10%,50/60Hz				AC380V±10%,50/60Hz
Operating Mode	Continuous / Modulation
Power Consumption	＜ 300W	＜ 600W	＜ 1.2KW	＜ 1.5KW	＜ 3.5KW	＜ 7KW	＜ 9.5KW
Cooling Capacity Requirements	0		0	0.8KW	1.5KW	3KW	4.5KW
Cooling mode	Air cooling			Water-cooling
Dimensions (LWH) (mm)	610480190		800480240	800470200	1140983563mm
Weight(KG)	33KG		42KG	39KG	160KG	170KG	180KG
Compatible Output Heads, Galvoscanner	Semiconductor Laser Output Head, Semiconductor Galvoscanner System, Shaping Spot Output Head
