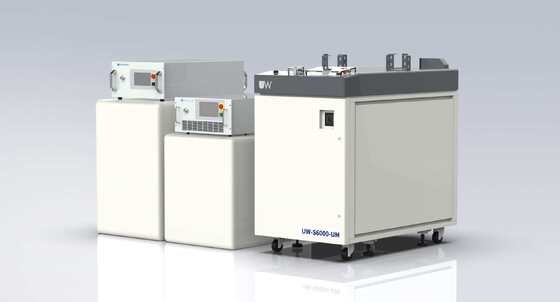

Precision High Power Fiber Laser Machine for Battery Hardware Automotive Industry

Brand Name:	UW
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Product Name:

Fiber Laser Machine

Laser Type:

Fiber Laser

Cooling Method:

Water Cooling

Transmission Fiber Connector:

Standard QBH

Laser Wavelength (nm):

1080±10

Operating Mode:

Continuous / Modulation

Packaging Details:

carton box/wooden box

Highlight:

High Power Fiber Laser Machine

Automotive Industry Fiber Laser Machine

Product Description

The fiber laser is a laser that uses rare earth-doped silica fibers as the gain mediums. When the pump light passes through

the fiber, the rare-earth ions in the fiber absorb the pump light, and its electrons are excited to a higher energy level, which

realizes the population inversion. The inverted particles transfer from the high energy level to the ground state in the form

of radiation and release energy to output laser light.

Highlights

• High electro-optic efficiency: the comprehensive electro-optic efficiency is more than 20%, which greatly saves the

power consumption and operation cost;

• Competent in harsh working environments, with high tolerance to dust, vibration, shock, temperature, and humidity;

• Miniaturized, precise, and highly integrated;

• Adjustment-free, maintenance-free and high stability

Applications

• Sinks, shelves, door frames, lampshades, door handles, knives, and so on in the hardware industry;

• Battery modules, battery sealing, flexible connection, pouch battery tab welding, and so on in the battery industry;

• Engine connecting rods, sensors, flywheels, gearbox forks, spark plug welding, and so on in the automotive industry;

• In the aerospace and military industries, etc.

Technical Parameters

Parameter Name	Parameter Value

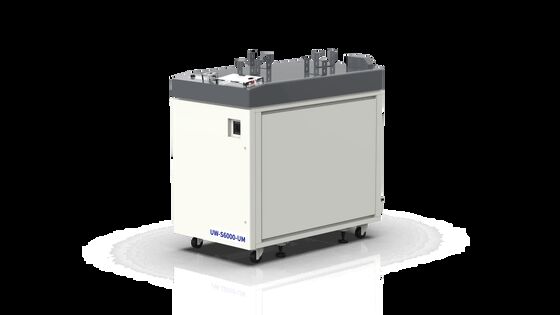

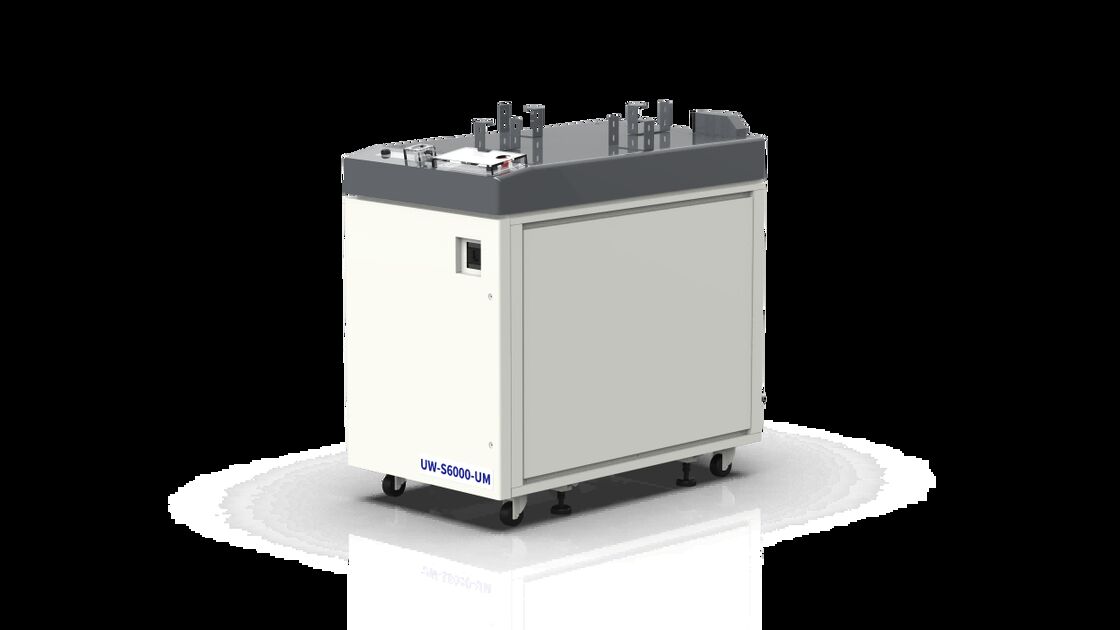

Laser Model	UW-S100-UM	UW-S500-UMS	UW-S1000-UMS	UW-S1500-UMS	UW-S2000-UM	UW-S3000-UM	UW-S4000-UM	UW-S6000-UM
Output Power	＞ 100W	＞ 500W	＞ 1000W	＞ 1500W	＞ 2000W	＞ 3000W	＞ 4000W	＞ 6000W
Output Core Diameter	14 丨 50 丨 100		14 丨 20 丨 50 丨 100		20 丨 50 丨 100		50 丨 100
Operating Mode	Continuous / Modulation
Polarization State	Random
Output Power Adjustment Range (%)	10-100	0-100
Laser Wavelength (nm)	1080±10
3dB Radiation Bandwidth (nm)	6±4					8±5
Switching Light Time(us)	150~200
Output Power Instability (%)	±2	±1.5		±2	±1.5	±2
Red Light Indicating Power (mW)	0.5~1
Transmission Fiber Connector	Standard QBH
Beam Quality BPP (86%)	≤0.4 丨 ≤1.5 丨 ≤3		≤0.4 丨 ≤0.5 丨 ≤1.5 丨 ≤3		≤0.5 丨 ≤1.5 丨 ≤3		≤2 丨 ≤4
Length of Transmission Fiber(M)	Single Mode Standard 10 meters, Multi Mode Standard 20 meters (others customizable)
Transmission Fiber Bending Radius (mm)	＞ 200						＞ 200 丨＞ 300
Operating Ambient Temperature (℃ )	10~40
Operating Environment Humidity (%)	10~80
Storage Ambient Temperature (℃ )	~10~60
Dimensions(mm)	735483240	700448255	810482203		1140563983		13707001200
Weight(KG)	42	80	80		230	250	380	440
Operating Voltage	AC220V±10%/P+N+PE/50Hz/60Hz				AC380V±10%/3P+N+PE/50Hz/60Hz
Power dissipation(kw)	<800W	2.8	4	6	7.1	11	17	20
Compatible Output Heads, Galvoscanner	Fiber Galvoscanner System, Fiber Laser Output Head, Oscillating Head, Shaping Spot Output Head
