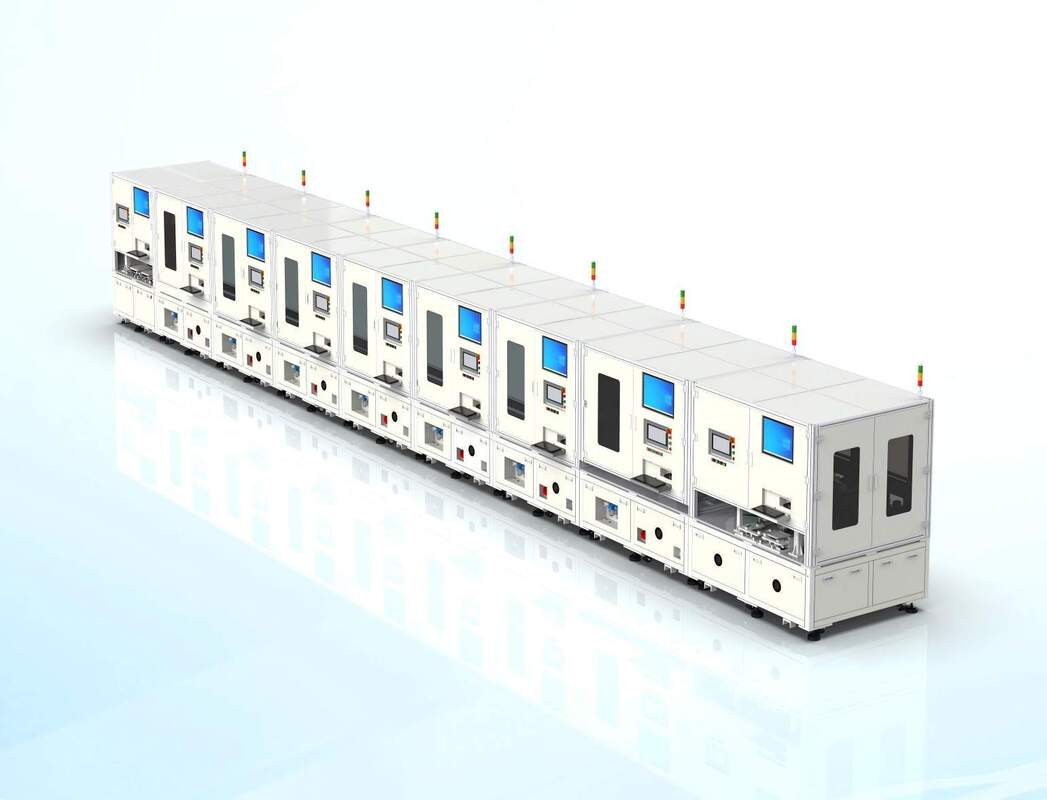

Automated 3C Industry Manufacturing Equipment Button Cell Battery Packs Assembly Line

Automated 3C Industry Manufacturing Equipment Button Cell Battery Packs Assembly Line

Automated 3C Industry Manufacturing Equipment Button Cell Battery Packs Assembly Line

Brand Name: UW
MOQ: 1set
Price: Negotiation
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Certification:
CE ISO
Dimensions(L*W*H):
16000*1300*2000mm
Operating Mode:
Continuous And Pulse Adjustable
NG Discharge Method:
Multi-station Discharge In Segments
Industry:
3C (Computer, Communication, Consumer Electronics)
Automation Level:
High Automation
Packaging Details:
carton box/wooden box
Highlight:

Automated 3C Industry Manufacturing Equipment

,

Intelligent Button Cell Battery Assembly Line

,

Automated Button Battery Assembly Line

Product Description
This intelligent manufacturing solution is mainly used in the pack assembly of button cell batteries across the 3C electronics industry and mainly focuses on the application of product lines related to the laser welding technology; the complete line comprises the all-in-one machine for material preparation, automatic welding machine for negative poles, automatic gluing machine, automatic labeling machine of the circular signs, automatic welding machine for positive poles, automatic labeling machine, automatic insulation gluing (side) machine, performance testing machine, size testing machine, etc. The design concept of the complete line is in line with the assembly process of most button batteries on the market, and the application technology has higher reliability and stability; the welding process is the core of the intelligent solution, with a high welding excellence rate and efficient product output, while the complete line is designed with data traceability to ensure accurate tracking and binding of the production process, and the relevant data can be retrieved later for viewing.

Technical Parameters
Property
Parameters
Dimensions(L*W*H)
16000*1300*2000mm
Laser Model
QCW150
Operating Mode
Continuous and pulse adjustable
Energy stability
＜ ±1%
Welding Method
spot welding
Pole Piece Incoming Method
Feeder machine
Cell Handling
Yamaha robo
NG Discharge Method
Multi-station discharge in segments
Gluing Accuracy
±0.2mm
Welding Pass Rate
99.5%
Efficiency
≥95%
Failure Rate
≤2%
Capacity
800-1200 UPH
