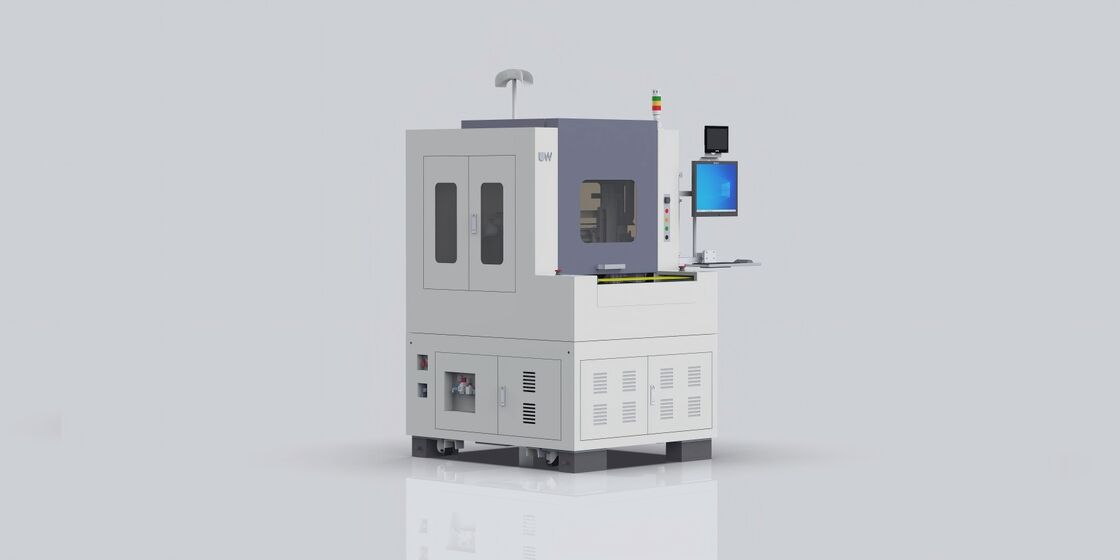

Double Station Solder Paste Welding Machine High Accuracy 2 Spots/Second

Name: Double Station Solder Paste Welding Machine High Accuracy 2 Spots/Second
Brand: Shenzhen Unite Winners Laser System Co., Ltd.
Availability: InStock

Brand Name:	UW
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Dimensions(L*W*H):

900mm×1200mm×1800mm

Laser Power:

50W—200W

Laser Wavelength:

915nm/1064nm

Welding Range:

250×250mm

Humidity:

30%-80%

Packaging Details:

carton box/wooden box

Highlight:

Double Station Solder Paste Welding Machine

Solder Paste Welding Machine High Accuracy

Product Description

The whole equipment is composed of marble combined with metal plate square tubes, which ensures that the high-speed welding machine has slight vibration and high stability. The double-station working mode is adopted to maximize the use of the pneumatic solder paste controller to improve the welding efficiency. The welding part is equipped with a linear motor combined with a feeding and grinding module to achieve short-distance smooth start and stop, long-distance swift response, and high-standard repeat positioning accuracy to ensure welding consistency and stability. The advanced paste discharging technology can satisfy the soldering and welding of precision electronic components. The ball ejecting speed can reach 1-2 spots/second at the fastest, thus avoiding the disadvantages of low precision and low efficiency of the traditional electric soldering and tin wire welding. At the same time, the equipment is easy to operate, which greatly improves the production capacity of customers' products and achieves a win-win situation of high efficiency and high return.

Highlights

High Performance: The highest welding efficiency is 2 spots/second, with alternating two stations for non-stop welding;

High Accuracy: The minimum diameter of the pin head is 0.1 mm, tin consistency is good, and the linear motor module has high welding accuracy;

Low Maintenance: The maintenance is simple as it only requires regularly adding solder pastes as well as cleaning and replacing the spray needle in daily life.

Technical Parameters

Property	Parameters
Dimensions(LWH)	900mm×1200mm×1800mm
Laser Power	50W—200W
Laser Wavelength	915nm/1064nm
Laser Type	Continuous semiconductor laser/continuous fiber laser
Laser Energy	0-100J
Pulse Width	0.2-1000ms
Energy Stability	±3%
Number of Loading Shafts	2
Number of Welding Heads	1
Welding Range	250×250mm
Maximum Speed	300mm/s
Repeatability	±20um
Temperature	15-25℃
Humidity	30%-80%
Cleanliness	Class 10000 and below
Voltage & Max Current Frequency	220VAC, maximum current 25A, 50/60Hz
