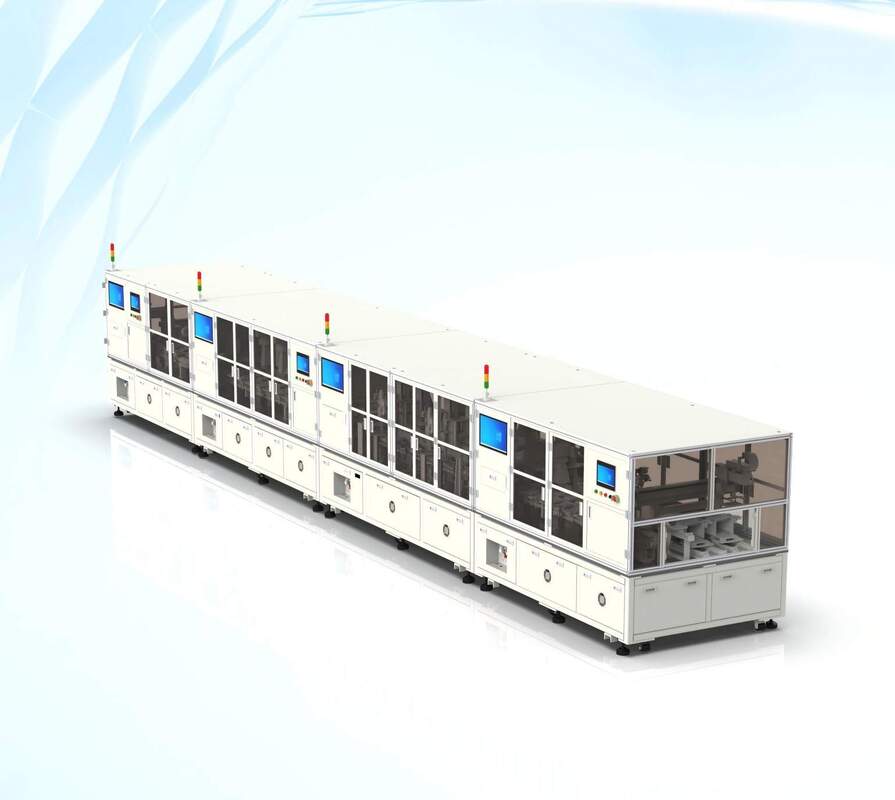

Fully Automated Button Battery Cells Assembly Line Pulse Adjustable 1000-1200UPH

Name: Fully Automated Button Battery Cells Assembly Line Pulse Adjustable 1000-1200UPH
Brand: Shenzhen Unite Winners Laser System Co., Ltd.
Availability: InStock

Brand Name:	UW
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Operating Mode:

Continuous And Pulse Adjustable

Dimensions(L*W*H):

12000*1600*2000mm

Welding Method:

Spot Welding,continuous Welding

NG Discharge Method:

Multi-station Discharge In Segments

Cell Handling:

Yamaha Robot

Packaging Details:

carton box/wooden box

Highlight:

Button Battery Cells Assembly Line

Fully Automated Button Battery Assembly Line

Product Description

The assembly line for button battery cells includes: automatic cell loading, cell tab shaping, cell hot pressing and perforating, OCV testing and screening, cell into the shell, positive electrode and end cap welding, negative electrode and steel shell welding, battery cell cover closing, shell cover sealing and welding, cell code engraving, performance testing, and wobble plate unloading, etc. The whole process is fully automated, the data is recorded, and the information is traceable.

Technical Parameters

Property	Parameters
Dimensions(LWH)	1200016002000mm
Laser Model	QCW150
Operating Mode	Continuous and pulse adjustable
Energy stability	＜±1%
Welding Method	spot welding,continuous welding
Pole Piece Incoming Method	Feeder machine
Cell Handling	Yamaha robot
NG Discharge Method	Multi-station discharge in segments
Gluing Accuracy	±0.35mm
Welding Pass Rate	99.5%
Efficiency	≥95%
Failure Rate	≤2%
Capacity	1000-1200 UPH
Welding Position Accuracy	±0.15mm
