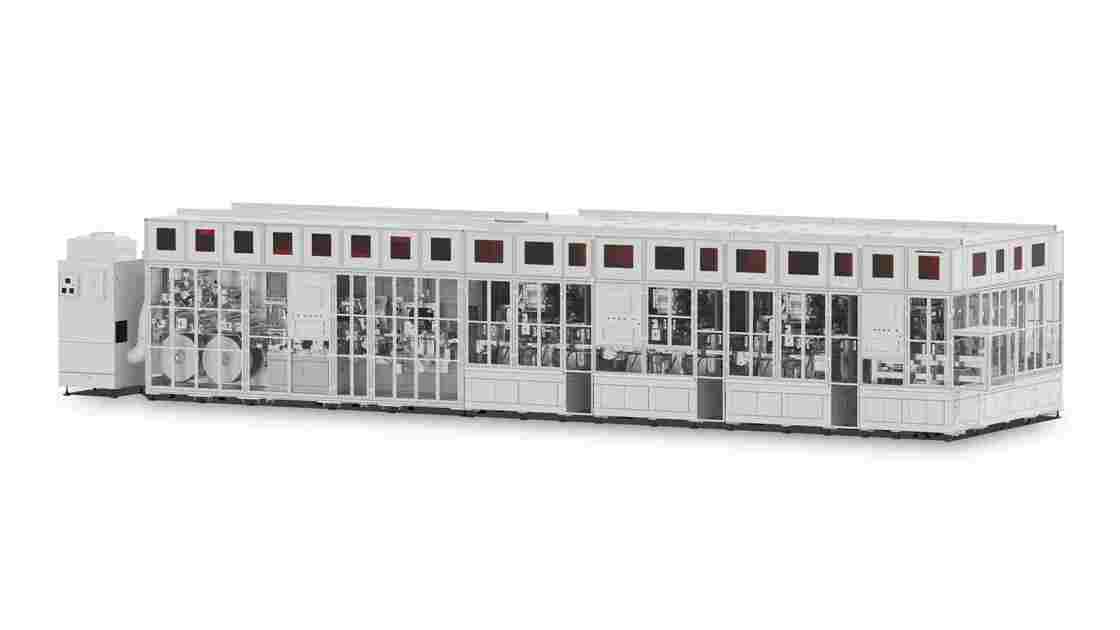

Touch Screen EV Battery Manufacturing Equipment Cutting And Stacking Machine

Brand Name:	UW
MOQ:	1set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE ISO

Control System:

Touch Screen

Equipment Type:

Automated Production Line

Application:

Electric Vehicle Battery Production

Warranty:

12 Months Manufacturer Warranty

Productname:

EV Battery Manufacturing Equipment

Safetyfeatures:

Emergency Stop, Overload Protection, Fire Suppression System

Packaging Details:

carton box/wooden box

Highlight:

Touch Screen EV Battery Manufacturing Equipment

EV Battery Cutting And Stacking Machine

Product Description

Applications

This equipment is used to cut and shape the anode and cathode electrodes of lithium batteries, and stack the cut

electrodes into a specified number of layers of cells. The cells are taped and hot-pressed before flowing into the next

process.

Equipment Overview

The electrode coils are manually placed on the unwinding air expansion shaft of the machine, which then automatically unwinds the electrode coils. The automatic correction mechanism corrects the unwinding process and the tension control system controls the tension of the unwinding electrode tabs. The traction mechanism delivers electrode tabs to the electrode forming station. By using metal dies, the ends of the electrode tab strips are formed into V-shapes. The electrode tab strips are then cut into individual electrode tabs by using metal cutting dies. A vacuum belt delivers the individual electrode tabs to the inspection station for CCD dimensional inspection and defect detection. Defective products are automatically rejected into the collecting container, while good products proceed to the stacking station. At the stacking station, the positive and negative electrodes are allocated to three stacking platforms. Together with the separator unwinding, the electrodes are alternately stacked into battery cell groups in a zigzag pattern. These cell groups are then fixed with U-type seal, affixed with 2D barcodes, hot-pressed and hi-pot tested and then discharged onto the conveyor line for the subsequent process.

Highlights

• The tension of the post terminal and separator are all controlled by servo motors in a closed loop, so the tension fluctuation is small;

• Each workstation area is independently isolated from each other and equipped with high-efficiency FFU, with less dust and many protection points;

• Wind speed and negative pressure monitoring at major dust removal stations ensures high cleanliness;

• Closed-loop control of separator loading, with high production accuracy;

• Modular design for quick model changeover and commissioning.

Parameters

Parameter Name	Parameter Value	Parameter Name	Parameter Value
Yield Rate	≥99.5%	Overall Alignment of Diaphragm	±0.4mm
Equipment Failure Rate	≤2%	Current Requirement	120kw
Single Stack Efficiency	0.5s/pcs	Rated Power	60m³/h
Auxiliary Time	10s	Power Factor	6000m³/h
Film-making Accuracy	±0.2mm	Compressed Air Pressure	80T(Only for reference)
Overall Alignment of Electrodes	±0.4mm	Air Consumption	22m5.1m3.2m
