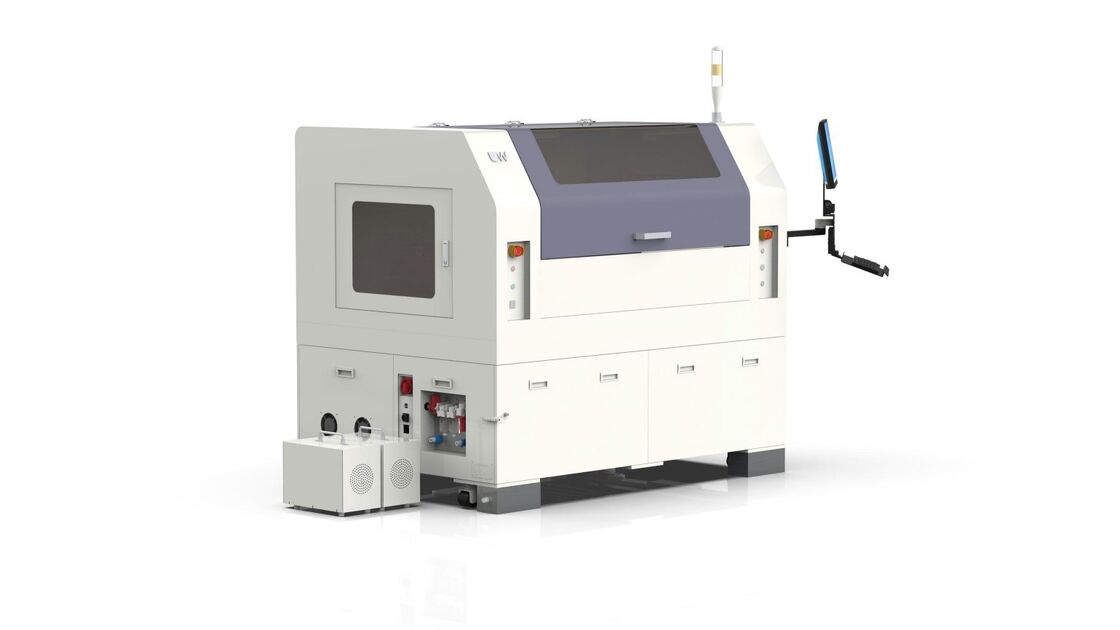

High Precision Multi Head Chip Mounter Machine For Optical Modules Driver Modules

High Precision Multi Head Chip Mounter Machine For Optical Modules Driver Modules

Brand Name: UW
MOQ: 1set
Price: Negotiation
Payment Terms: T/T
Detail Information
Certification:
CE ISO
Production Cycle:
3s-12s
Chip Size:
0.15×0.15mm-5×5mm (Lens To Be Replaced Per Product Requirements)
PR System:
256 Grayscale Levels / Edge Detection
Resolution:
1920pixel×2560pixel
Weight:
1200KG (Subject To Actual Product)
Standard Track Width:
40-90mm
Packaging Details:
carton box/wooden box
Highlight:

Multi Head Chip Mounter Machine

,

High Precision Chip Mounter Machine

Product Description

Equipment Applications

Optical modules, HDMI/USB connectors, sensors, optical devices, light source modules, driver modules, etc.



Highlights

  • High-Precision Assembly: Equipped with SP-grade silent linear guides with a straightness tolerance of within 2 μm (measured by dial indicator). Adopts system laser interferometer motion compensation technology, featuring a positioning accuracy of ±0.8 μm and a repeat positioning accuracy of ±0.4 μm. Capable of achieving fast and high-precision fixed-duration control of 6 pulses within 100 ms, ensuring consistent precision across batch-produced equipment and minimizing accuracy deviations caused by moving components.
  • Reduced Misjudgment: The nozzle is configured with an independent micro-flow air circuit, enabling separate detection of each nozzle loop to reduce system misjudgment.
  • Strong Compatibility: Compatible with both optical chip and electrical chip mounting processes.
  • Professional Services: Supported by a dedicated vision technology team, which can customize efficient and accurate positioning solutions for various product types.
  • Customization Services: A eutectic module can be added to upgrade the equipment into a eutectic die bonder.
Technical Parameters
Parameter Name
Parameter Value
Production Cycle
3s-12s
Mounting Accuracy
±3 ~ ±5μm@3σ
Angular Accuracy
±0.5° @3σ
Chip Size
0.15×0.15mm-5×5mm (Lens to be replaced per product requirements)
Chip Thickness
0.076-1mm(3-40mil, standard)minimum thickness down to 0.05mm(2mil,optional)
Substrate Size
L: 100-300mm;W: 40-90mm(Customization optional for widths below 40 mm)
H: 0.1-0.8mm(standard)0.8-2.0mm(optional)
Magazine Size
(To be provided by the customer according to product specifications)
Wafer Size
Compatible with 6–8 inch wafers (2-inch & 4-inch waffle packs)
Automatic θ Calibration
Range of ±15°
Maximum Wafer Angle Correction
360°
Bonding Force
20-300g
Standard Track Width
40-90mm
PR System
256 grayscale levels / edge detection
Resolution
1920pixel×2560pixel
PR Accuracy
5M(1920×2560pixel) FOV(16mm;×1,×2,×4)
Angular Tolerance
±0.1°
Dimensions
W: 1630mm; H: 1160mm; D: 1500mm (Subject to actual product)
Weight
1200KG (Subject to actual product)
