| Brand Name: | UW |
| MOQ: | 1set |
| Price: | Negotiation |
| Payment Terms: | T/T |

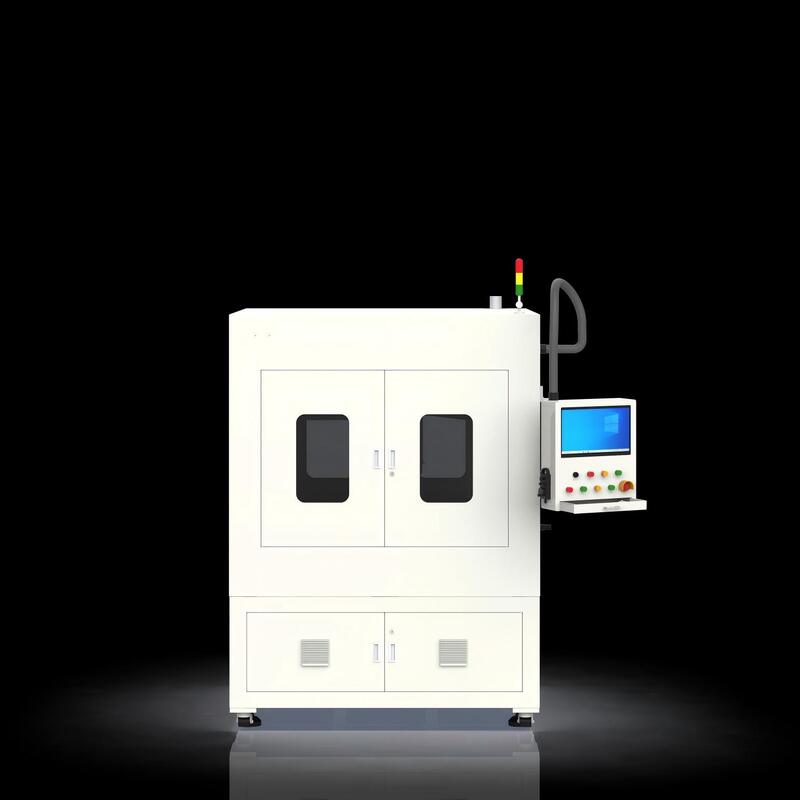

Equipment Overview
The system adopts an advanced laser source dedicated to glass drilling, fully leveraging the advantages of laser processing such as high speed, high precision, and flexible processing methods. It can drill circular holes, kidney‑shaped holes, square holes, special‑shaped holes, and micro-holes with high stability. The process features no water pollution, clean inner walls, and low damage, with chipping performance significantly better than mechanical drilling. The overall processing speed is 5-10 times faster than traditional CNC machining.
Highlights
• Machine Accuracy: ±1 μm repeat positioning accuracy
• Laser Type: Compatible with nanosecond and femtosecond lasers
• Process Capability: Capable of processing glass up to 20 mm thick
• Product Compatibility: Supports multiple product sizes with one‑click parameter switching
• Processing Efficiency: 300 mm/s
Equipment Applications
The glass laser drilling machine is mainly used for glass drilling in industries such as display glass, home appliance glass, glassware, and optoelectronic glass.
Technical Specifications
| Parameter Name | Specification |
| Max. Hole Diameter | 140mm |
| Average Chipping | ＜ 350um |
| Laser Type | Picosecond Laser |
| Laser Power | >50W |
| Operating Voltage | AC220V |
| Pulse Width | 10 ~ 15ps |
| Frequency Range | 25 ~ 3000kHz |
| Beam Quality | ＜ 1.5 |
| Spot Diameter | 2mm+/-0.3 |
| Cooling Method | Water Cooling |
